A2E-TRI New Open-Source
Industrial Ethernet Vibration Sensor with Built‑in FFT

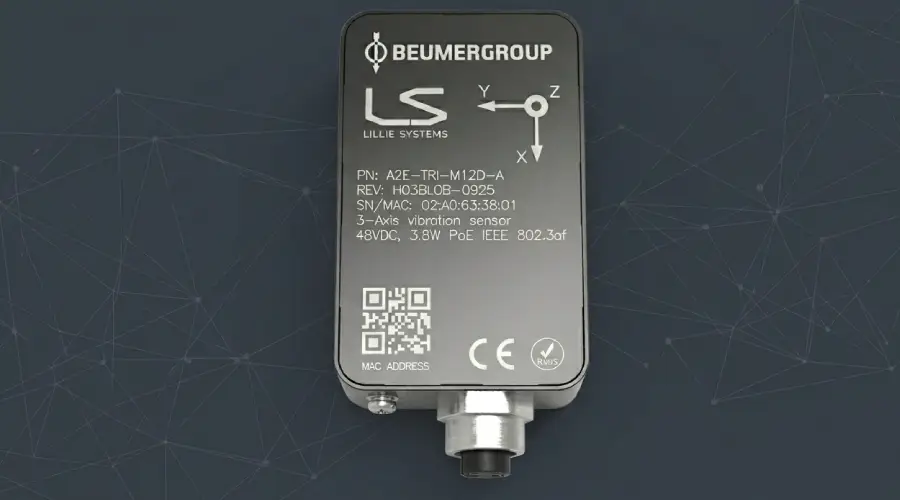

The A2E-TRI is an industrial PoE Ethernet vibration sensor designed for condition monitoring and predictive maintenance. It provides triaxial acceleration data and onboard FFT analysis without the need for external DAQ hardware.
Pricing
A2E-TRI Pricing
Part Number
A2E-TRI
Prices shown are ex-works. Contact us for shipping, customs, and volume >249 pcs.
Key Highlights
- ✓ One cable installs — PoE powers the sensor and carries data on the same Ethernet run.
- ✓ High-fidelity data — DC through kHz bandwidth and ultra-low noise density for clean spectra.
- ✓ Raw or FFT — or both — time waveforms for root-cause analysis; spectra for continuous monitoring.
- ✓ NTP-timestamped — correlate data across sensors, machines, and test runs out of the box.
- ✓ Industrial-grade build — aluminium IP67 housing; M12 D-coded for secure, vibration-resistant connections.
- ✓ No lock-in — standard Ethernet transport and open-source tools for fast OEM and lab integration.
Technical Data
Specifications
| Interface | Ethernet 10/100 Mbit/s, M12 D-coded connector |
|---|---|
| Power | PoE IEEE 802.3af/at — < 2 W typical |
| Full Scale Range | ±2g / ±4g / ±8g / ±16g (selectable) |
| Sensitivity (±2g) | 0.061 mg/LSB |
| Bandwidth | DC – 6.3 kHz, configurable via digital filter |
| Noise Density | 75 µg/√Hz (3-axis); 60 µg/√Hz (single-axis) |
| Measurement | Per-axis (1/2/3-axis) or vector-magnitude modes |
| Sample Rate | Configurable 104 Hz – 26.7 kHz |
| On-device FFT | 256 / 512 / 1024 / 2048 samples; Q15 or Float32 precision |
| Data Outputs | Raw streaming + FFT — independent, simultaneous; NTP-timestamped |
| Protocol | Open-source Protobuf over TCP or UDP (selectable per stream); UDP multicast config |
| Security | HMAC-MD5 authenticated config; encrypted secure boot |
| Temperature Sensors | 2 × board + 1 × MCU core (on-device) |
| Enclosure | Aluminium, black anodised |
| Protection | IP67 |
| Operating Temperature | −40 °C to +75 °C |
| Dimensions | 67 × 42 × 19.6 mm — mechanical drawing |
| Weight | Approx. 112 g |
| Mounting | 4 × M4 + 1 × M6 mounting holes |
| Vibration | IEC 60068-2-6 |
| Certifications | CE marked — IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-4 (Class A & B) |
Part Number
A2E-TRI
Single variant — aluminium enclosure, M12 D-coded
Product Overview
Industrial Triaxial Accelerometer with PoE Ethernet and M12 D-coded Connector
The A2E-TRI is an industrial triaxial accelerometer purpose-built for industrial vibration monitoring in permanent installations. As a PoE vibration sensor, it streams raw 3-axis acceleration data over standard 10/100 Ethernet, with Power over Ethernet (PoE IEEE 802.3af) supplying the sensor through the same M12 D-coded cable — eliminating separate power wiring and reducing installation complexity. Built-in NTP timestamping ensures samples are precisely time-aligned, making it straightforward to correlate data across multiple sensors, machines, and test runs.
Onboard FFT vibration analysis is computed per axis across all three channels, providing frequency spectra alongside raw waveforms — or instead of them. This edge vibration processing allows the condition monitoring sensor to be configured for continuous spectral monitoring with minimal data transfer, or switched to full raw capture when detailed time-domain data is needed for root-cause analysis. Both output modes can run simultaneously, making the A2E-TRI a versatile predictive maintenance sensor for any facility.
The entire data protocol is open source. All sensor communication uses published Protobuf schemas over standard TCP or UDP — no proprietary drivers, no vendor SDK, no licence fees. Pre-compiled bindings for Python, C, and C++ are included. Build your own toolchain or integrate directly into existing infrastructure.
An open-source browser-based interface application is also included. It provides live waveform display, FFT and PSD visualisation, sensor configuration, mDNS auto-discovery, and data logging to TSV or HDF5 files. Runs on any machine with Python 3.10+ and a modern browser. View on GitHub

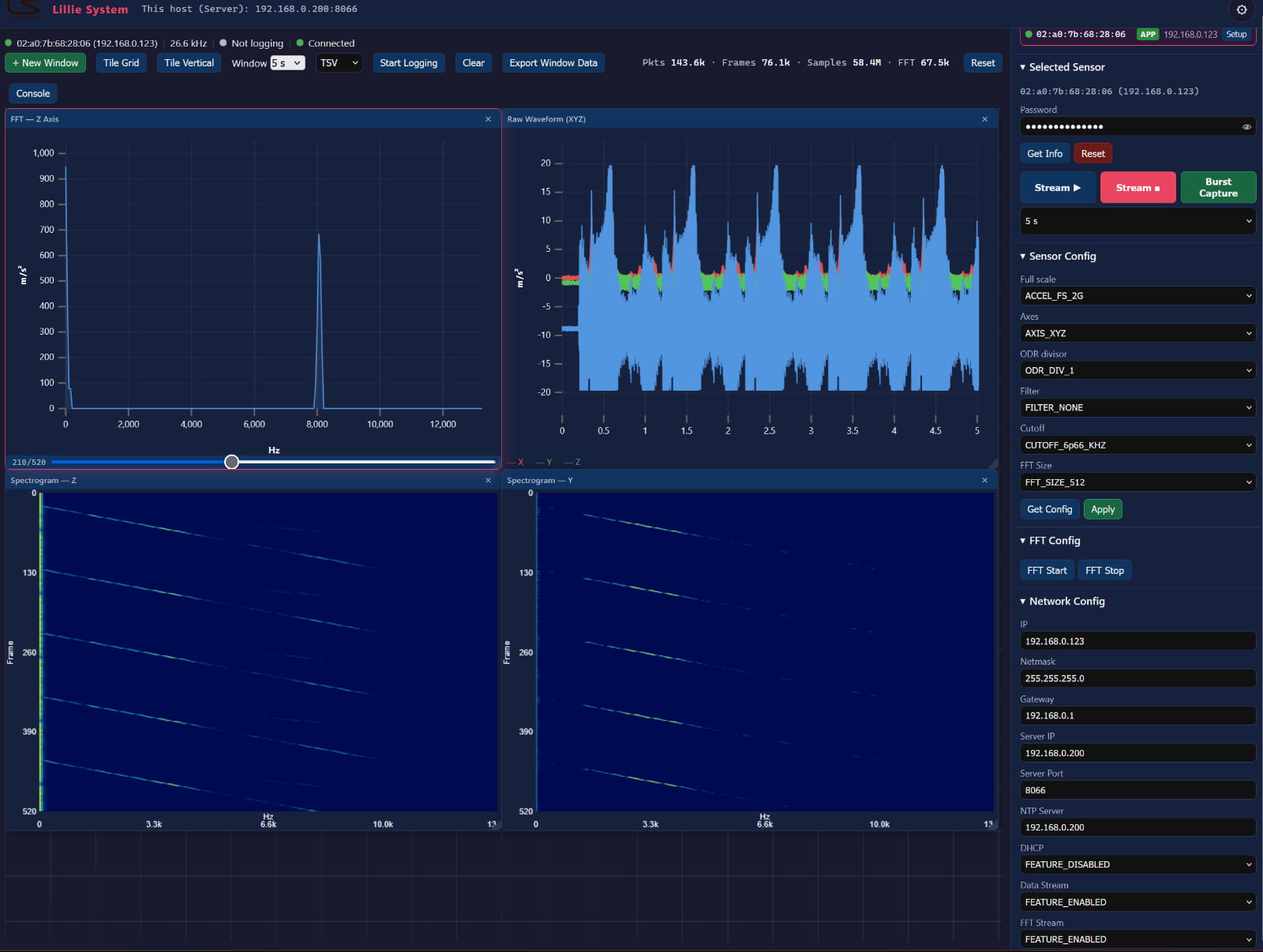

Interface software — 512-bin FFT, 1 s sweep, 5 s burst capture showing raw data, FFT, and spectrogram views simultaneously.
Interactive 3D Model
Explore the A2E-TRI Sensor
Click and drag to rotate · Scroll to zoom · Right-click to pan
Loading 3D model…
Why the A2E-TRI
High‑Fidelity Vibration Over Standard Ethernet
Designed for engineers who need reliable, high-resolution vibration data in real installations — not just lab-bench prototypes.
- ✓ Deploy faster with one cable: PoE powers the sensor and carries data on the same Ethernet run — clean installs, less panel work, fewer failure points.
- ✓ Get high-fidelity vibration data — not just "overall levels": triaxial bandwidth designed for DC through the kHz range and ultra-low noise density for clean spectra and better baselining.
- ✓ Stream raw, compute FFT, or do both: capture time waveforms for root-cause analysis, or transmit spectra for continuous monitoring without moving huge datasets.
- ✓ Time-aligned datasets out of the box: built-in NTP timestamping enables correlation across sensors, machines, and test runs — especially valuable in multi-point monitoring.
- ✓ Designed for real installations: aluminium encapsulated, IP67-rated housing for industrial environments; M12 D-coded Ethernet for secure, vibration-resistant connections.
- ✓ Integrate without lock-in: standard Ethernet transport and open-source tools lower "time to first data" and simplify OEM and lab integration.
- ✓ Scale on existing IT/OT networks: 10/100 Ethernet fits common industrial switching topologies — no special gateway required.
- ✓ Reduce adoption risk: CE marked and tested; built for repeatable installs and documented integration.
Why Switch
Traditional Setup vs. A2E-TRI
Replace a multi-component vibration measurement chain with a single Ethernet vibration sensor.
| Traditional Setup | A2E-TRI |
|---|---|
| Sensor + DAQ + software | Single device |
| Complex wiring | Single PoE cable |
| Expensive system | Lower total cost |
| Offline analysis | Real-time FFT |
| Proprietary software | Open-source data protocol |
Customization
Built to Your Requirements
The standard A2E-TRI covers most applications out of the box — but if your project has specific requirements, we can help.
- + Custom enclosure or material: need stainless steel, a different form factor, or a higher IP rating? Contact us to discuss options.
- + Specific software feature: need a custom data format, additional protocol support, or on-device processing? Contact us to discuss options.
- + Calibration & documentation: factory calibration certificate, serial-numbered test report, and integration documentation available on request.
Interface Software
Open-Source Browser Viewer — Included
No proprietary software or licensing required. Runs on any machine with Python 3.10+ and a modern browser.
Live Visualisation
Real-time 3-axis waveform display, FFT spectrum, and Power Spectral Density (PSD) — all streamed live from the sensor.
Flexible Layout
Draggable, resizable floating windows — create any combination of raw, FFT, and PSD views across all three axes.
Full Configuration
Set full scale, sample rate, filter, and FFT size directly from the browser. Network configuration and DHCP also supported.
Auto-Discovery
mDNS / Zeroconf automatically finds sensors on the local network — no manual IP configuration required to get started.
Data Logging
Log raw waveforms and FFT data to TSV or HDF5 files for offline analysis in MATLAB, Python, or similar tools.
Get the Browser Viewer
Included free with the A2E-TRI. Open-source and available on GitHub.
View on GitHub
Use Cases
Applications
Motor condition monitoring
Bearing fault detection
Pump vibration analysis
Structural vibration measurement
Marine structural monitoring
Wind turbine blade vibration
Wind turbine tower sway analysis
Read case study →
EV chassis testing
