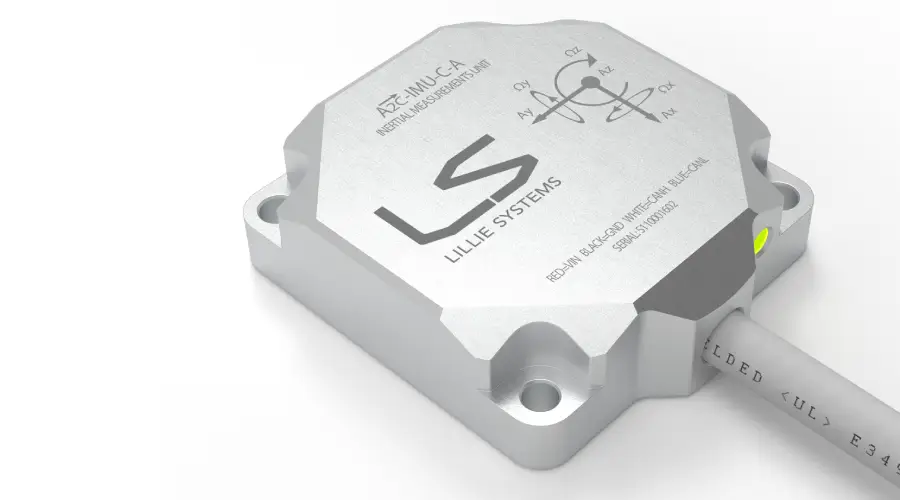

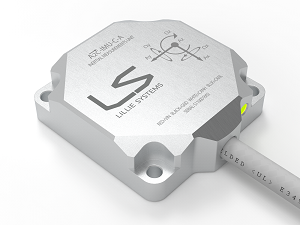

Inertial Measurement Unit
A2C-IMU-C

1Hz to 1kHz data rate
Ultra-low noise accelerometer
±2 to ±16g Full-scale range
Ultra-low drift gyro
±250 to ±2000dps Full-scale range
Sensor fusion
Linear accelerations
Roll, Pitch, Yaw output

READ MORE
Slide 1

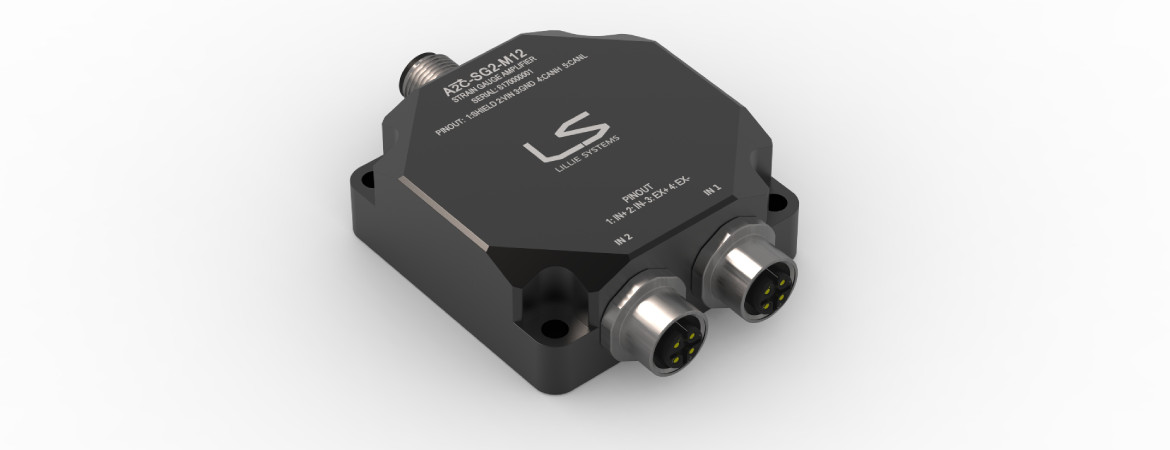

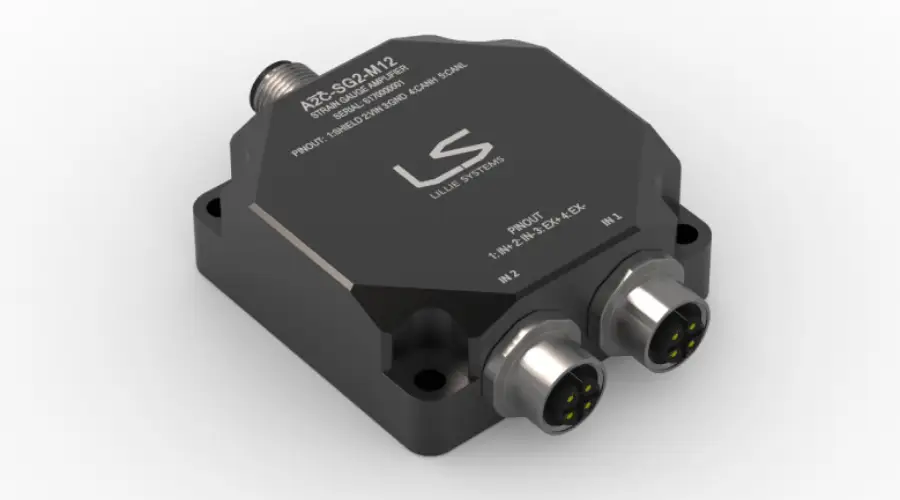

Signal conditioner
A2C-SG2

For load cells or strain gauges
Up to 4800Hz data rate
Dual channel 24bit ADC
Programmable input gain
Chopper ADC with Ultra-low drift
RMS calculations

READ MORE
previous arrow
next arrow

NEW! Strain gauge amplifier with CAN bus

New A2C-SG2 now with industrial connectors and higher data rate. More rugged than ever! The new 2 channel strain gauge amplifier (signal conditioner) with CAN bus interface. Convert mV inputs to CAN bus and analyze up to 2 channels. Channels can be connected together so the difference / addition / multiplication or ratio of different channels can be analyzed. 6 alarms setting and a logic (special version) output enables stand alone operation.

Acceleration / Angle with CAN bus

This new Angle sensor can work as a standalone sensor with logic alarm output or connected to your host controller. Available with M12 connector or in a smaller housing with cable.

Case Study: Tower Sway Sensor Implementation

Venn Design Solutions and Lillie Systems collaborate to develop cost-effective tower-sway sensor for Orenda Energy’s 50kW Skye Wind Turbine fleet.

New Data logger with CAN Bus

Incredible tough with 3G/4G internet connection

A2C-mA

4-20mA Analyzer with 3 channels. Convert mA inputs to CAN bus and analyze up to 3 channels. Channels can be connected together so the difference / addition / multiplication or ratio of different channels can be analyzed. 6 alarms setting and a logic (automotive compliant) output enables stand alone operation.
The A2C Brand are a category of sensors which use CAN Bus to communicate with a host. Additionally they have a logic output which can be programmed to trigger when a certain condition is met. This enables the sensor to operate without a host and act as an advanced limit switch / supervision sensor.

Inclinometer

This new inclinometer can work as a standalone sensor with logic alarm output or connected to your host controller. Available with M12 connector or in a smaller housing with cable. This same sensor can be used as an acceleromter.

Strain gauge amplifier with CAN bus - NEW!

2 channel strain gauge amplifier (signal conditioner) with CAN bus interface. Convert mV inputs to CAN bus and analyze up to 2 channels. Channels can be connected together so the difference / addition / multiplication or ratio of different channels can be analyzed. 6 alarms setting and a logic (automotive compliant) output enables stand alone operation.

Datalogging system for vertical drains

DLMU-16B is the 2nd generation data logging solution for vertical drains. This systems is expandable to include machine control and GPS systems.

Dual Hall Sensors

This sensitive dual hall sensor is perfect for sensing rotating shafts, winches, drums etc.

A2C sensors overview

Overview

The A2C Brand are a category of sensors which use CAN Bus to communicate with a host. Additionally they have a logic output which can be programmed to trigger when a certain condition is met. This enables the sensor to operate without a host and act as an advanced limit switch / supervision sensor.

A2C-TRIA2C-TRI

Outputs Tilt angles (roll pitch) and acceleration in a variety of formats. Adjustable bandwidth, periodic messages, alarms etc.

A2C-TRI-GPSA2C-TRI-GPS

Output Tilt angles (roll pitch) and acceleration in a variety of formats. Adjustable bandwidth, periodic messages, alarms etc. Uses the newest GPS sensor to track satellites from GPS, GLONAS, GALILEO, BEIDU satellites. Output for precise GPS time - one pulse per second.

A2C-MAA2C-MA

The A2C-MA measures milliampere signals (4-20mA). 3 signals can be measured at the same time. Math function allows for measuring the difference between two sensors. This can be useful when measuring differential pressures using two pressure sensors.

A2C-VOLTA2C-VOLT

The A2C-V measures Voltage signals (0-10V). 3 signals can be measured at the same time. Math function allows for measuring the difference between two sensors. This can be useful when measuring differential pressures using two pressure sensors. Min / Max, and RMS values can be outputted.

Go to products

GPS Sensors

A2C Sensors with integrated high performance GNSS sensor. This is the most modern solution able to track both American GPS, Russian GLONAS, European GALILEO, Chinese Beidu and Japanese Satellites. Available with integrated acceleration / tilt sensor.
